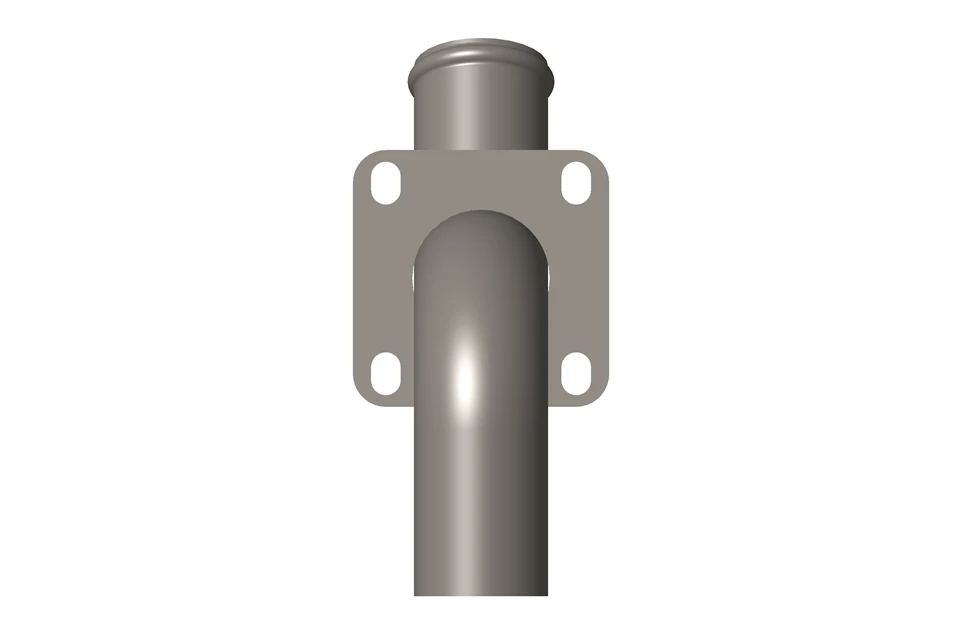

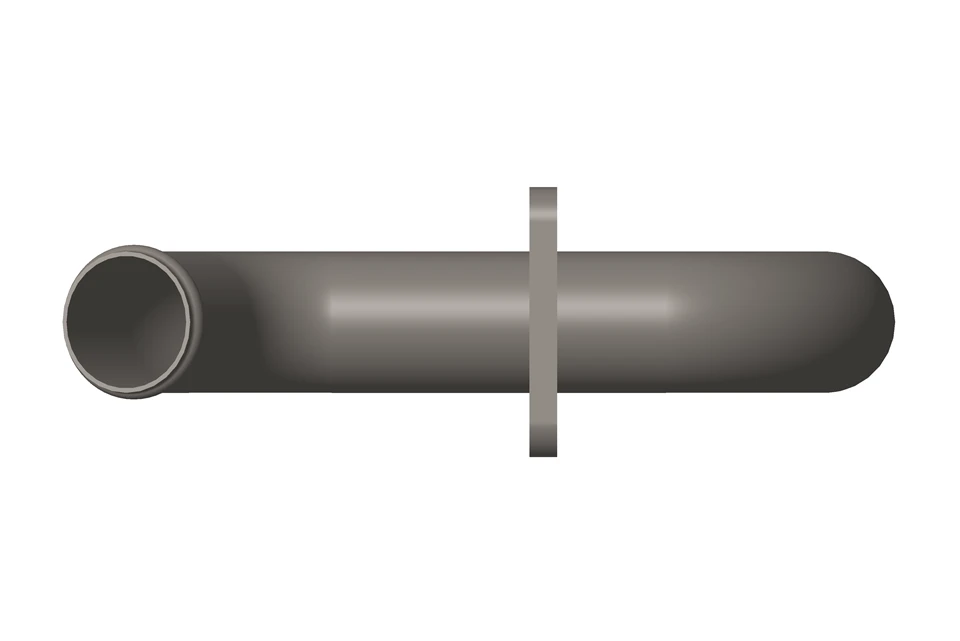

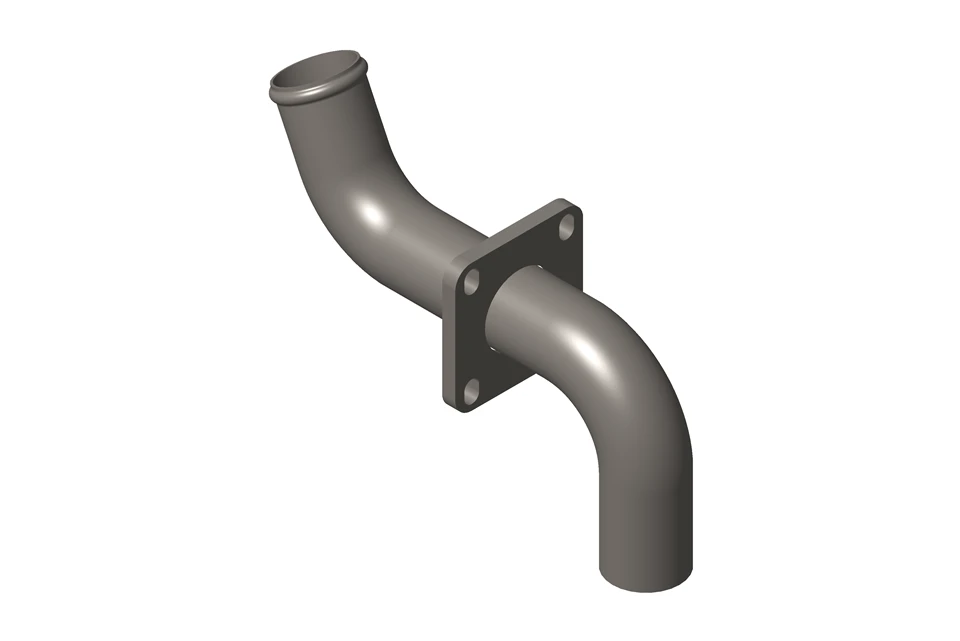

3636230 Oil Return Pipe Engineering Machinery Parts For Cummins OSK60

1. Five-layer composite tube structure

Nano-ceramic coating (inner layer): Al₂O₃-TiO₂ composite coating (thickness of 50μm) is deposited by plasma spraying technology, with surface roughness Ra ≤ 0.2μm, which reduces the residue of motor oil adhesion by 73%.

Shape memory alloy layer (intermediate layer): NiTiNb alloy triggers a phase transition at 120°C to compensate for the differential thermal expansion (axial compensation ±1.5mm/m)

Basalt fibre reinforcement layer: 45° cross-wound fibre bundles, tensile strength up to 1200MPa, weight 60% lower than traditional metal pipes.

Magnetic fluid dynamic sealing ring: fluorine rubber seals containing Fe₃O₄ nanoparticles, maintaining sealing contact pressure of >0.8MPa within the range of axial vibration ± 2mm

Self-compensating clamp: Integrated shape memory washer (Cu-Al-Mn alloy), preload force increased by 30% at temperatures >90°C.

Scenario 1: High altitude mining equipment

Scenario 2: LNG-powered ships

Scenario 3: Hybrid construction machinery

1. Fibre optic health monitoring system

Embedded with FBG fibre optic sensors, real-time monitoring of pipe body strain (accuracy ±5με), temperature (±0.5℃)

Predict the remaining life through AI algorithm (error <±7%), 90 days in advance warning of the risk of failure.

2. Modular quick release design

Snap-on connection structure (Patent No. CN2023XXXXXXXX) reduces replacement time from 45 minutes to 8 minutes.

Supports segmental replacement, reducing maintenance costs by 60%.

3. Carbon footprint optimisation

Tube body material contains 35% recycled aluminium (UL 2809 certified)

Laser cleaning and refurbishment technology restores performance of old tubes to 95% of new tubes, reducing carbon emissions by 72% compared to new tubes.
