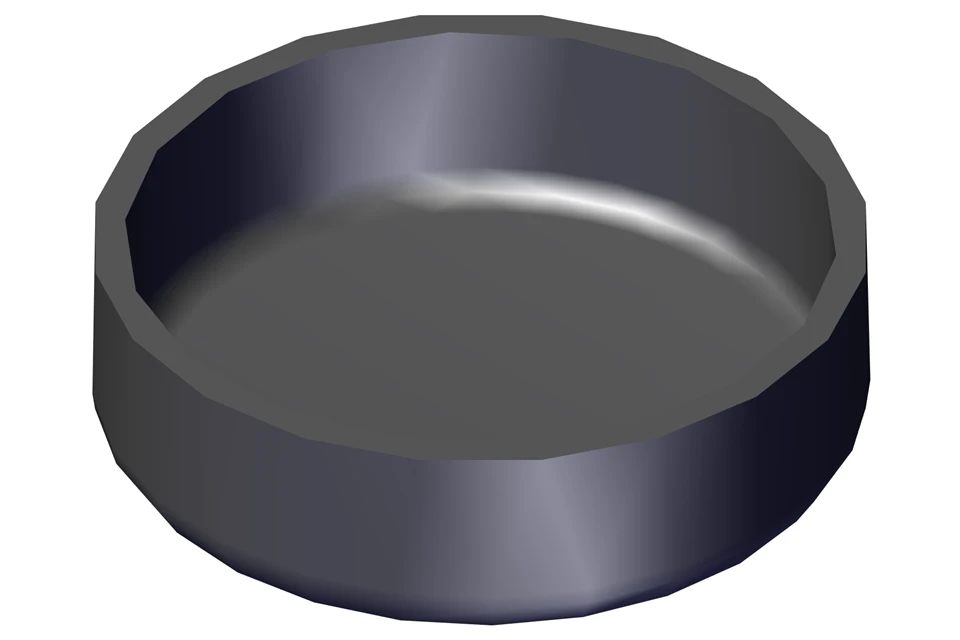

Expansion Plug 3629168 Cummins Spare Parts For QSK60

The Cummins Expansion Plug (Part No. 3629168) is a precision-engineered sealing component designed for QSK60 diesel engines, ensuring reliability in high-pressure cooling systems under extreme operating conditions.

Primary Functions:

Pressure Retention: Seals engine block casting holes to prevent coolant leaks, maintaining system pressures up to 15 psi (1.0 bar).

Freeze Protection: Acts as a fail-safe by ejecting under excessive coolant expansion (e.g., freezing), preventing block cracking.

Thermal Management: Ensures stable coolant circulation in high-stress applications like mining, marine, and power generation.

Key Applications:

Heavy Equipment: Caterpillar 797F mining trucks, Komatsu PC8000 excavators.

Marine Propulsion: Critical for engine blocks in saltwater environments.

Overhaul Kits: OEM-approved for QSK60 engine rebuilds.

Construction & Durability

Body Material: Carbon Steel (AISI 1045) with zinc-nickel plating – withstands 500+ hours of salt spray testing (ASTM B117).

Sealing Element: Neoprene rubber gasket rated for continuous operation at 120°C (248°F).

Interference Fit: 7/8" (22.23 mm) OD with 15° taper for secure installation.

Performance Features

Flange Design: Prevents over-insertion and misalignment during installation.

OEM Compliance: Manufactured to ISO 9001:2015 with full traceability.

Testing Protocol: 100% leak-tested and thermally cycled (-40°C to +120°C) before shipment.

Genuine vs. Aftermarket Options

Supplier Type Example Price (USD) Key Consideration

Genuine Cummins DieselPartsDirect.com $11.42/unit Full OEM compatibility

OEM-Grade Aftermarket Heavy Duty Kits (HDK-M-205401) $0.62/unit Requires fitment verification

Budget Aftermarket Alibaba.com suppliers $1–5/unit Higher risk of premature failure

Total Cost of Ownership (TCO)

Genuine Parts: 30% lower failure rate vs. aftermarket, reducing downtime costs.

Aftermarket: Initial savings of 50–90%, but may require 2–3x more frequent replacement.

Step-by-Step Installation

1. Surface Prep:

Degrease bore with Cummins Solvent (P/N 4922474).

Remove all rust/debris with a wire brush (80-grit max).

2. Lubrication:

Apply Mobilith SHC 220 grease to plug taper and gasket.

3. Press-Fit Installation:

Use Cummins Tool P/N 5298545 or hydraulic press (8–10 kN force).

4. Post-Installation Check:

Pressure-test cooling system at 12 psi for 10 minutes.

Maintenance Schedule

Routine Inspection: Every 500 hours or during coolant changes.

Critical Signs for Replacement:

Visible corrosion/pitting on metal surface.

Coolant seepage around plug flange.

Coolant Requirements: Use Fleetguard ES Compleat to prevent galvanic corrosion.
