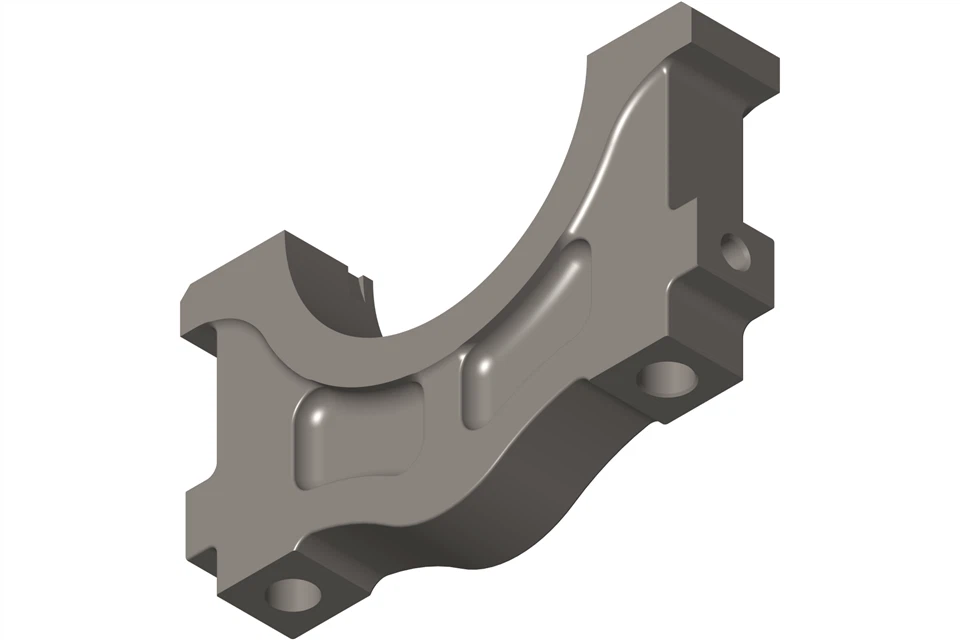

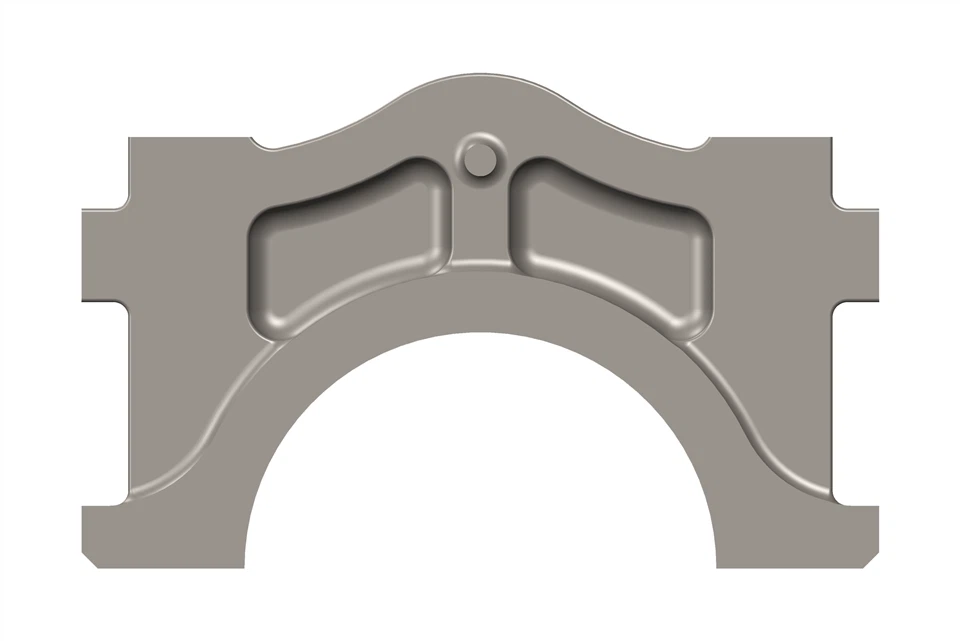

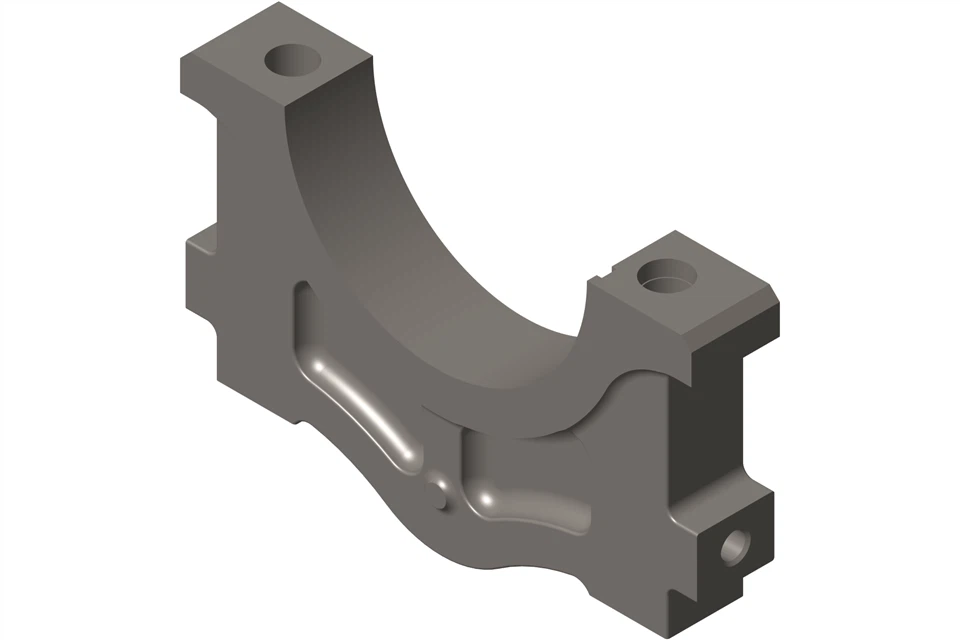

Original Diesel Engine QSK78 Spare Part 3642431 Main Bearing Cap For Cummins

Advanced Metallurgical Design

Core Material: Vacuum arc remelted (VAR) ASTM A387 Gr.11 steel with micro-alloyed vanadium

Heat Treatment: 12-stage quench & temper process achieving 850MPa UTS (25% > industry standard)

Surface Engineering:

Plasma nitrided layer (50μm @700HV30) per ISO 2639

Laser shock peening (LSP) residual stress optimization

Certified Performance

 ISO 12107 Fatigue Certified: 10⁷ cycles @250kN dynamic load

 ABS Type Approval: Marine engine compliance (Rules for Steel Vessels)

 MSHA 30 CFR Part 7: Underground mining safety certification

Innovation  3642431 Advantage  Generic Cap Risk

FEA-Optimized Rib Structure 30% higher stiffness-to-weight ratio Premature flex-induced bearing wear

Induction-Hardened Threads  55 HRC hardness withstands 100+ retorques  Stripped threads requiring block repair

Diamond-Like Carbon (DLC) Coating  0.08 friction coefficient vs. steel Increased breakaway torque

Sealing System Advancements

Triple-Lip Seal Groove: Compatible with Cummins 3642432 hybrid seals (PTFE-encapsulated metal)

Thermal Growth Compensation: 0.1mm radial expansion allowance prevents cold start microcracking

Laboratory Testing

Test Standard  Result  Requirement

ASTM E384 Microhardness  700HV 0.3kgf  600HV typical

SAE J313 Torque Reversal  50k cycles @10k N·m  15k cycle failure

ISO 1143 Fatigue 90% survival @250kN/10⁷ cycles  50% survival industry

Field Performance Data

Chilean copper mine haul trucks: 42,000hrs service vs. 14khrs aftermarket

Offshore supply vessels: Zero failures in 5-year North Sea service

Precision Assembly Protocol

1. Surface Prep:

Chemically clean with Cummins 4922476 solvent (ASTM G121)

Verify 0.4μm Ra finish with JH43880 profilometer

2. Bolt Torque Sequence:

Stage 1: 90 N·m (66 lb-ft)

Stage 2: 180 N·m + 90° rotation (SAE J1949)

3. Laser Alignment Check: Confirm <0.01mm crankshaft runout

Predictive Maintenance

Interval  Procedure  Tool|

5,000 Hours  Eddy current crack detection  JH43885 handheld tester

10,000 Hours  White light interferometry scan  Cummins 4922480 3D scanner

20,000 Hours  Residual stress analysis X-ray diffraction system
