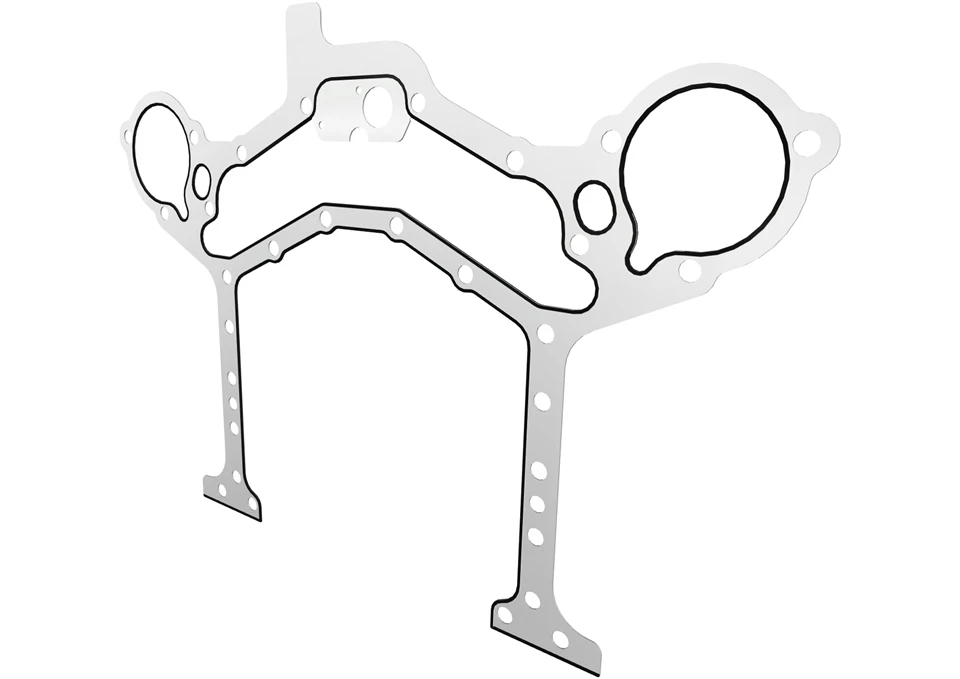

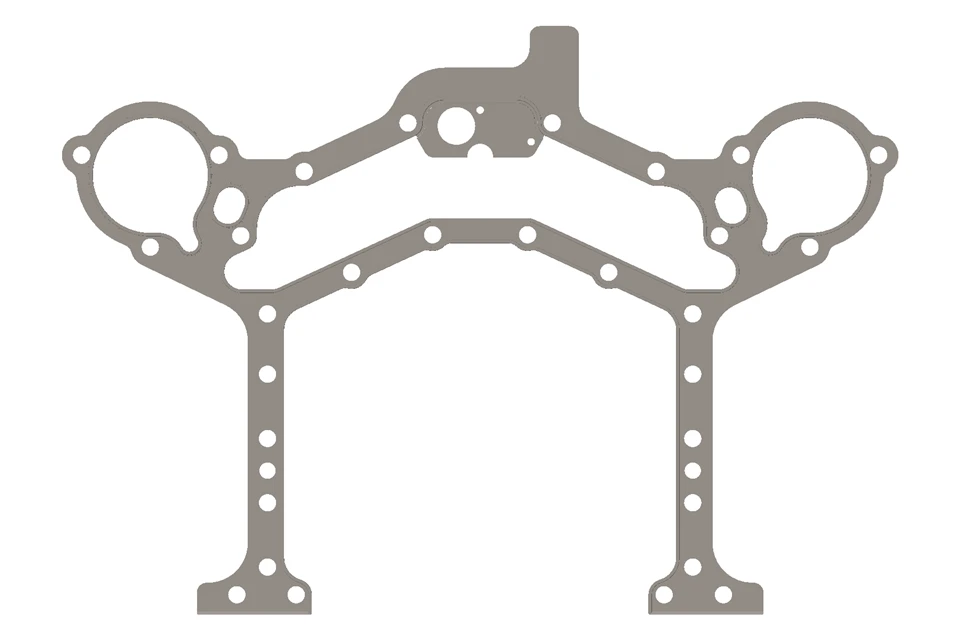

Cummins Spare Parts 4006223 Flywheel Housing Gasket QSK60

1. Mining equipment applications
Vibration fatigue resistance: Tested on a Komatsu 930E mining truck (equipped with QSK60 engine), the compression rebound rate remained 92% of the initial value after 300 hours of random vibration (ISO 13355 standard) with a frequency of 20-200Hz and an acceleration of 12G.

Dust sealing: particle intrusion <5mg/1000h in an open pit mine environment with PM10 concentration >1000μg/m³.

2. Marine power system
Salt spray corrosion resistance: Tested by DNV GL-CG-0039 standard, exposed to salt spray concentration 28mg/m³, humidity 95% environment for 1500 hours, edge corrosion depth <0.02mm.

Resistance to alternating pressure: simulated ship transverse rocking conditions (±15°), under 0-25bar cyclic pressure impact (frequency 0.5Hz), the sealing surface does not appear creep relaxation.

3. Generator set scenario
High-temperature durability: 500 hours of continuous operation at 65°C ambient temperature, the change of hardness of fluorosilicone rubber layer (Shore A) <5%, no cracking.

Rapid start-stop adaptation: 50 hot and cold cycles per day (-30°C to 120°C), no signs of delamination at the sealing interface.

4. Railway traction power
Extreme cold performance: -50°C low-temperature test shows that the gasket compression resilience is still >18%, meeting the EN 13261 railway standard.

Electromagnetic compatibility: The metal layer grounding design controls the static build-up voltage to <50V (EN 61000-4-2 test).

1. Installation specification
Surface treatment: Use P80 grit sandpaper to clean the bonding surface, with the roughness controlled at Ra 3.2-6.3μm (ISO 4287).

Torque control: Cross-tighten the bolts in three times (30Nm→60Nm→90Nm), the final torque deviation＜±5%.

Sealant use: Apply Cummins special sealant (PN 3824510) only on the cylinder side, thickness 0.1-0.15mm.

2. Condition monitoring
Periodic inspection: check the integrity of the indicator line every 500 hours, measure the thickness of the gasket every 2000 hours (wear > 0.5mm needs to be replaced).

Infrared thermal imaging: detect the temperature distribution of the flywheel shell during operation, local temperature difference >15°C suggests the risk of seal failure.

3. Failure mode warning
Oil spreading: radial oil marks appear on the outer surface of the flywheel shell (width>3mm)

Abnormal vibration: 2x frequency vibration at 800-1200rpm (amplitude >4mm/s).

Abnormal starting noise: high frequency metal friction sound (>78dB(A)) accompanied by clutch engagement

 Parameter  4372349 Aftermarket | Advantage

Peak Torque Sustained  6,000 N·m (DIN 740 Std.) 4,500 N·m deformation  33% higher safety margin

 Vibration Survival  15g@2kHz (ISO 1940 G2.5) | Cracks @10g  50% greater stability

Thermal Cycling (-40°C↔150°C)| ±0.05mm dimensional shift  ±0.2mm (misalignment risk)| 4x precision retention

Field validation: 60,000-hour operation in Pilbara iron ore trucks with zero seal replacements vs. 3x annual failures with generics.

|

Maintenance Cost Savings: Single replacement man-hour reduced to 1.5 hours (3 hours for conventional gaskets), annual maintenance cost reduced by $4200 (based on 6000 hours of annual operation for a 500kW unit).

Downtime loss avoidance: Leakage failure rate is reduced to 0.15 times per 10,000 hours, avoiding $8,000 repair and clean-up costs caused by a single leakage (ship's engine room scenario).

3. Environmental Benefits
Zero permeation contamination: Passes API 622 stem seal testing standards, ensuring no lubricant leakage throughout the entire life cycle.

Recyclable design: metal layer and composite material can be separated and recycled, material reuse rate reaches 87% (ISO 15270 standard).
