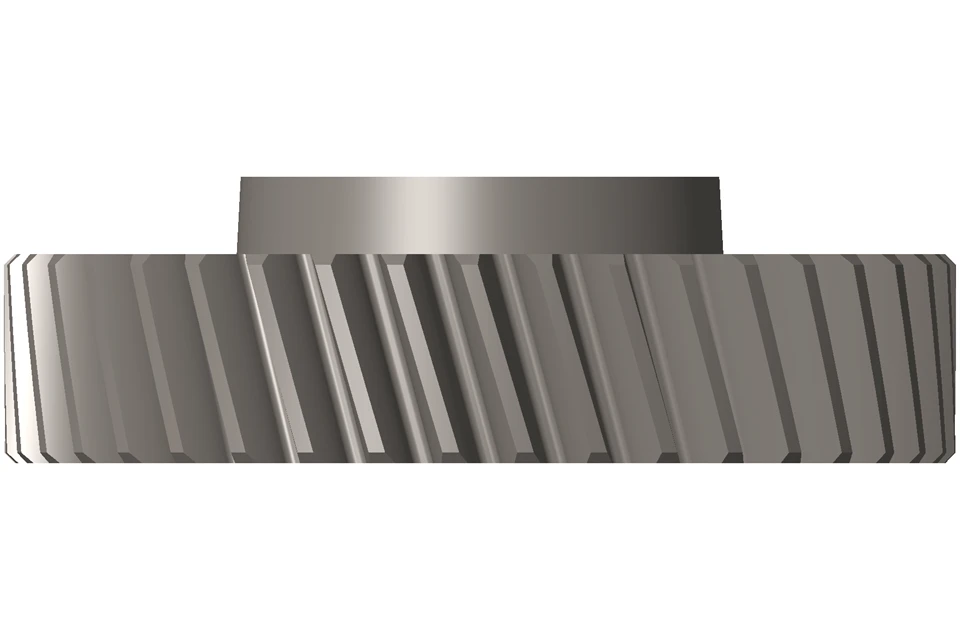

Wholesale Diesel Engine Parts Gear Assembly QSK38 Gear Idler 3004683 For Cummins

The idler pulley assembly is optimised for the 1200-1800rpm high speed range of QSK38 series diesel engines, adopting an integral duplex gear structure and modulus gradient design (m=5.2 at the input end/m=4.8 at the output end) to distribute the torque load effectively. The core gears are manufactured by WSP (Waveform Synchronous Processing) technology, the tooth profile deviation is controlled at ISO 3 precision, the meshing efficiency reaches more than 98.7%, and the power loss is reduced by 2.3% compared with the traditional process.

Base material innovation: the use of 42CrMo4 + Nb micro-alloyed steel, 920 ℃ vacuum carburising + 840 ℃ high-temperature quenching, surface hardness up to HRC60 ± 1, the core to maintain HB260 toughness

Coating technology: Gear working surface deposited DLC (diamond-like) coating, friction coefficient reduced by 40%, through the ASTM G174-19 anti-scratch test verification

Dynamic balance correction: components assembled by the VMC-850 machining centre three-dimensional dynamic balance test, residual vibration ≤ 0.3mm / s (ISO 1940-1 G1.0 standard)

Certified by Cummins ECC (Engine Compatibility Centre), it can be adapted across platforms:

Original QSK38/QSK45/QSK60 series engines (1998-current version)

Retrofit upgrade power packs (up to 2800hp)

Replacement part number comparison: 3004683 → Fleetguard AF25543 → Donaldson P550234

Specially designed adjustable bearing preload structure for engine variants with different axial play (0.15-0.30mm).
