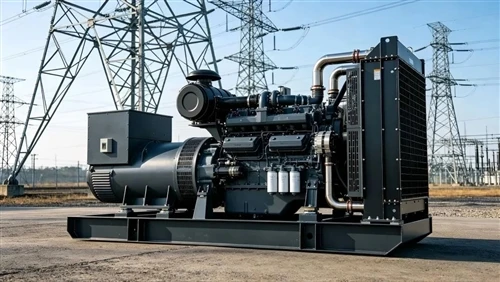

Comparison Of Advantages And Disadvantages Of Medium And High Voltage Diesel Generator Sets

Core advantages of medium and high-voltage diesel generator sets (commonly 6.3kV/10.5kV/13.8kV): low line loss, long-distance power transmission, large capacity, equipment-saving, easy to parallel, suitable for high-power, long-distance, centralized power supply scenarios.





Ⅰ. Extremely Low Transmission Loss (Most Critical)
- When power is fixed, the higher the voltage, the lower the current (P = √3UIcosφ).
- Line loss is proportional to the square of the current (P_loss = I²R); halving the current reduces loss to one-fourth.
- 10kV line loss is 70% lower than 400V, achieving high transmission efficiency over long distances (up to 50km).
- Cable cross-section can be significantly reduced, lowering material and construction costs.



Ⅱ. Large Capacity and Long-Distance Power Supply
- Single-unit power can reach several thousand kW, suitable for data centers, large factories, mines, oil fields, and ports.
- Directly outputs 10kV, eliminating the need for step-up transformers, and can be directly connected to the high-voltage grid, saving on equipment and infrastructure investment.
- Supports centralized power rooms, with multiple units (up to 32) paralleled for expansion, ensuring efficient management.



Ⅲ. Simplified Distribution System, Reduced Investment
- No need for large numbers of low-voltage distribution cabinets or large cross-section cables; investment in distribution equipment is reduced by 30%.
- High-voltage side protection is more comprehensive, minimizing fault impact and ensuring reliable power supply.



Ⅳ. Economical Operation, Reliable and Durable
- High-voltage motors are more efficient, consuming less fuel/oil, resulting in lower long-term operational costs.
- High insulation grade (Class F), resistant to impact, long service life, and extended maintenance cycles.
- Good voltage waveform, high voltage regulation accuracy, strong load capacity, and fast dynamic response.



Ⅴ. Suitable Typical Scenarios
- Large data centers, communication hubs
- Metallurgical, chemical, mining, and oil enterprises
- Airports, ports, rail transit
- Large new energy power stations (wind and solar) grid integration



Summary
Medium- and high-voltage units excel in efficiency, cost savings, stability, and ease of expansion, making them the preferred choice for high-power, long-distance, and high-reliability scenarios.

Next, let's discuss the disadvantages of medium and high voltage diesel generator sets:

1. High equipment cost and large initial investment
- High-voltage motors, high-voltage switchgear, high-voltage circuit breakers, transformers, and high-voltage insulation components are far more expensive than low-voltage units.
- The engine room requires specialized high-voltage power distribution facilities and protection devices, resulting in higher overall infrastructure costs.



2. High technical threshold and complex installation and commissioning
- High-voltage insulation, withstand voltage testing, relay protection, and grid-connection adjustment require strong professional expertise.
- Installation demands strict adherence to spacing, insulation distances, grounding, and dust and moisture protection, with construction standards much higher than for low-voltage units.



3. High operation and maintenance difficulty, requiring skilled personnel
- Certified high-voltage electricians must be assigned; ordinary electricians cannot operate.
- Routine inspections, withstand voltage tests, insulation checks, and protection verification procedures are cumbersome, resulting in higher maintenance costs.
- Troubleshooting is difficult, components have low interchangeability, and procurement lead times are long.



4. Higher safety risks
- The risk of high-voltage electric shock and arc explosions is far greater than with low-voltage systems.
- Engine rooms must have stringent fire protection, anti-misoperation, interlocking devices, and safety procedure requirements; any management oversight creates safety hazards.



5. Not suitable for small power or short-distance loads
- Using high voltage in small capacity applications is overkill, with very low cost-effectiveness.
- Terminal equipment is mostly 380V, requiring additional step-down transformers, which increases equipment and losses.



6. Large size and floor space requirements
- High-voltage engines, switchgear, busbar bridges, and insulation safety distances occupy significant space, requiring much larger engine rooms than low-voltage units.



7. Stricter constraints for parallel operation and grid connection
- Parallel and grid-connected operation of multiple high-voltage units requires precise synchronization of phase sequence, frequency, voltage, and protection settings.
- System adjustment, circulating current control, and fault relay protection design are complex, and errors in design can lead to major accidents.



8. Greater starting impact and system effects
- High-voltage units cause stronger grid impact and voltage fluctuations when switched on or carrying large loads, requiring complex voltage stabilization and soft grid-connection measures.

Below is a complete comparison table of the advantages and disadvantages of high-voltage generator sets vs low-voltage generator sets.



Applicable voltages: Medium-high voltage 6kV/10.5kV; Low voltage 400V/230V.



Comparison Dimension	Medium and High Voltage Generator Set	Low-Voltage Generator Set
Single-unit capacity	800 kW to several thousand kW, suitable for high-power centralized power supply	≤800kW, dedicated for small and medium power, small load
Transmission distance	Long-distance power supply, low voltage drop, low loss	Limited to within 200 meters, long-distance line loss is large and voltage drop is obvious
Transmission loss	Low current, extremely low line loss, more energy-saving in long-term operation	High current, high line loss over long distances, and large energy waste
Initial cost	The equipment, high-voltage cabinets, and infrastructure have high costs, requiring a large one-time investment.	The complete machine and its accessories are inexpensive, resulting in low initial investment costs.
Cable cost	The cable has a small cross-section, saves material, and the construction and laying costs are low.	Requires large cross-section cables, wiring, and construction costs are relatively high
Machine room footprint	Requires high-voltage safety clearance and occupies a large area	Streamlined structure, fewer supporting cabinets, smaller footprint
Distribution equipment	Equipped with high-voltage switchgear and relay protection, the system is complex	A standard low-voltage distribution cabinet is sufficient, the system is simple.
Installation and debugging	Highly specialized, with difficult construction and commissioning, and high requirements	Highly specialized, with difficult construction and commissioning and high requirements
Operator	Requires certified high-voltage electricians, high labor costs	Ordinary low-voltage electricians are sufficient, and labor costs are low.
Daily Maintenance	The maintenance project is professionally complex and has high operational costs.	Easy maintenance, compatible parts, low operating costs
Safety risk	High voltage electrical shock risk is high, safety control is strict	Low voltage safety, low operational risk, simple management
Terminal Adaptation	Requires a step-down transformer, suitable for 380V load	Directly connect to 380V equipment, no voltage conversion needed
Multiple Machine Parallel Operation	Can be heavily parallelized, has a high technical threshold, and is complex to debug	Small units are easy to parallel, and control technology is mature.
Applicable scenarios	Large factories, mines, data centers, centralized power supply scenarios	Residential complexes, office buildings, small construction sites, emergency Small load



Finally, a quick summary for selection:

1. For a single unit with power ≥ 800 kW, power supply distance over 200 meters, or centralized high-capacity loads → choosing a medium- to high-voltage unit is more cost-effective.



2. For low power, nearby power supply, limited budget, or simple daily maintenance needs → selecting a low-voltage unit offers the best cost performance.





You can describe your requirements, and based on your estimated power, supply distance, and whether multiple units will operate in parallel, we can recommend whether to choose a high-voltage or low-voltage unit to provide you with a reference opinion.
